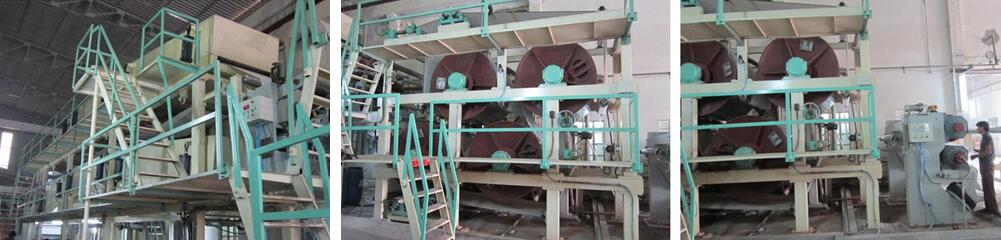

Thermal Paper Coating Machine



1. Designed speed: 300 m/min

2. Working speed: 200-250 m/min

3. Base paper weight: 40~100g/m2

4. Base paper width: 700~1100 mm

5. Maximum diameter of paper roll: Φ1400 mm

6. Coating mode: Coater blade coating

7. Coating weight: 5~8g/m

8. Drying mode: Single side hot air drying system

9. Finishing mode: Dry cylinder finishing and calendar finishing

10. Steam working pressure: 0.4-0.6Mpa inside oven box,

11. Finishing dry cylinder: <0.3Mpa

12. Paper feeding and paper joint mode: Manual

13. Driving mode: Frequency conversion divisional control motor

14. Total power of main motor: 72KW

15. Maximum dimension: (LxWxH) 27500 X 5800 X 5100mm
